Description
POWER AND
THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
Fast, EasyConfiguration
for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.
Focus on the Event Not the Fan Noise
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX
With built-in NETGEAR IGMP Plus™, there’s little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
MAXIMIZE
PERFORMANCE
WITH PRO WIFI
ACCESS POINTS
Enable powerful, reliable WiFi at your location with Pro WiFi access points, powered by PoE or an external power adapter.

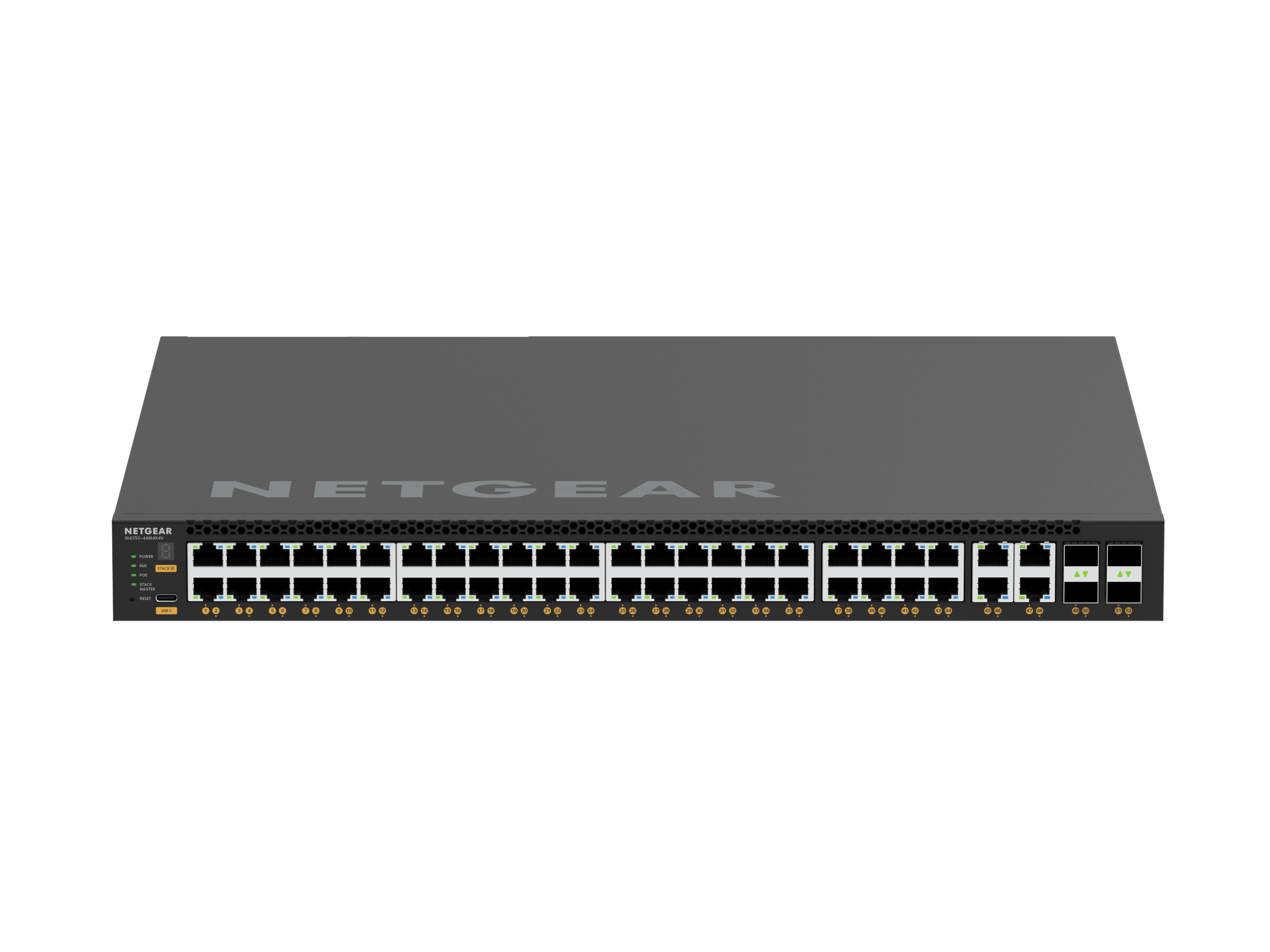

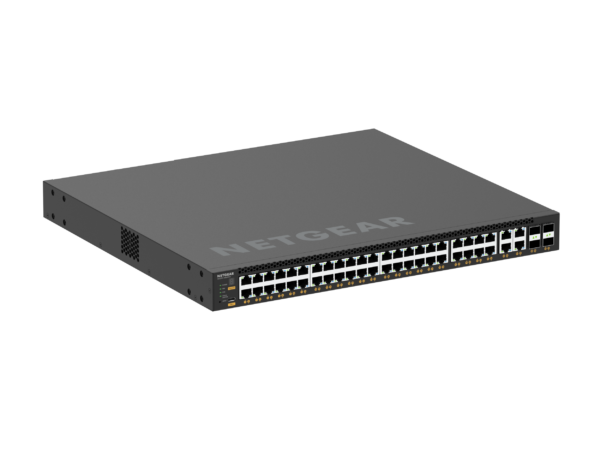

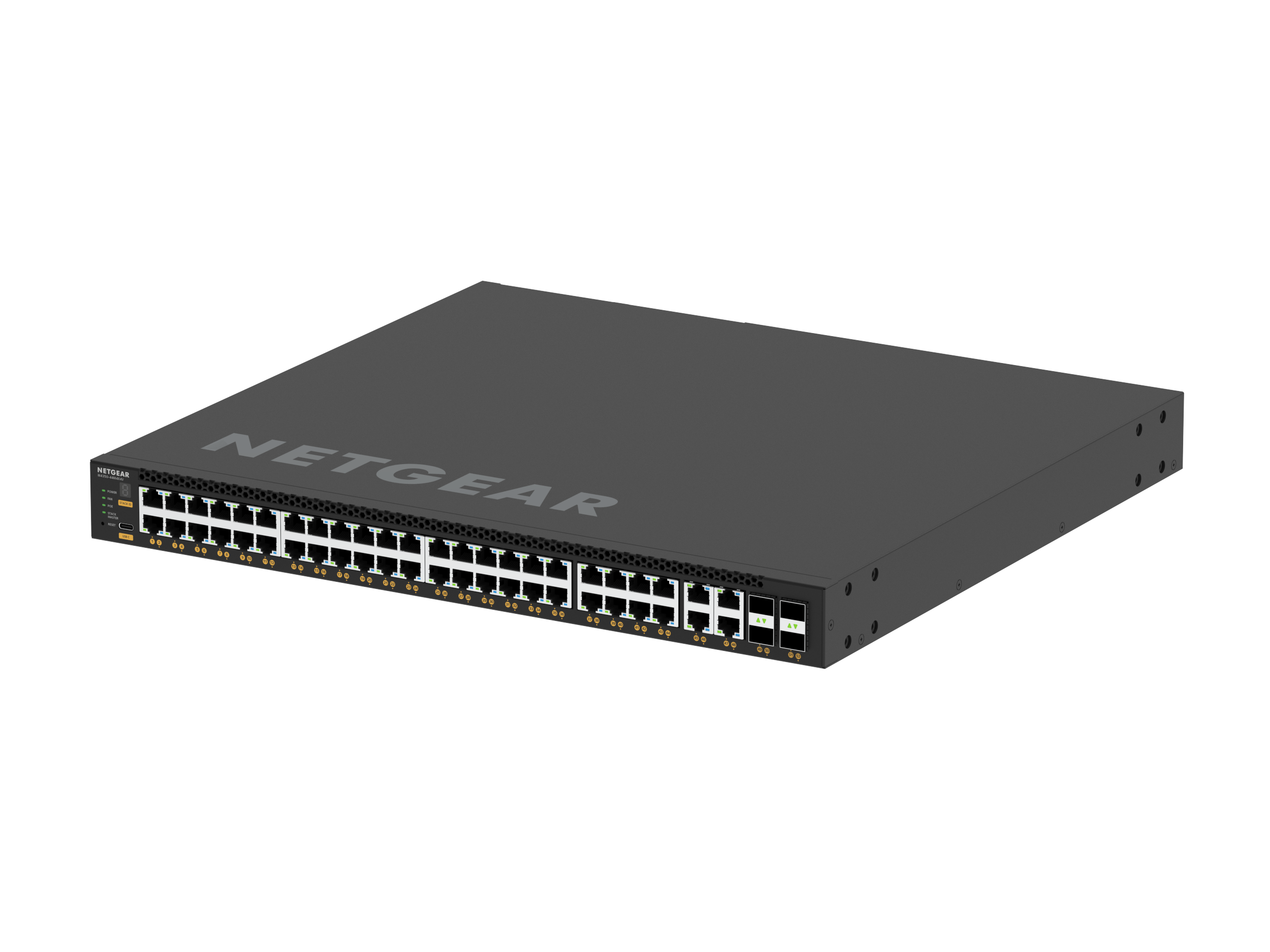

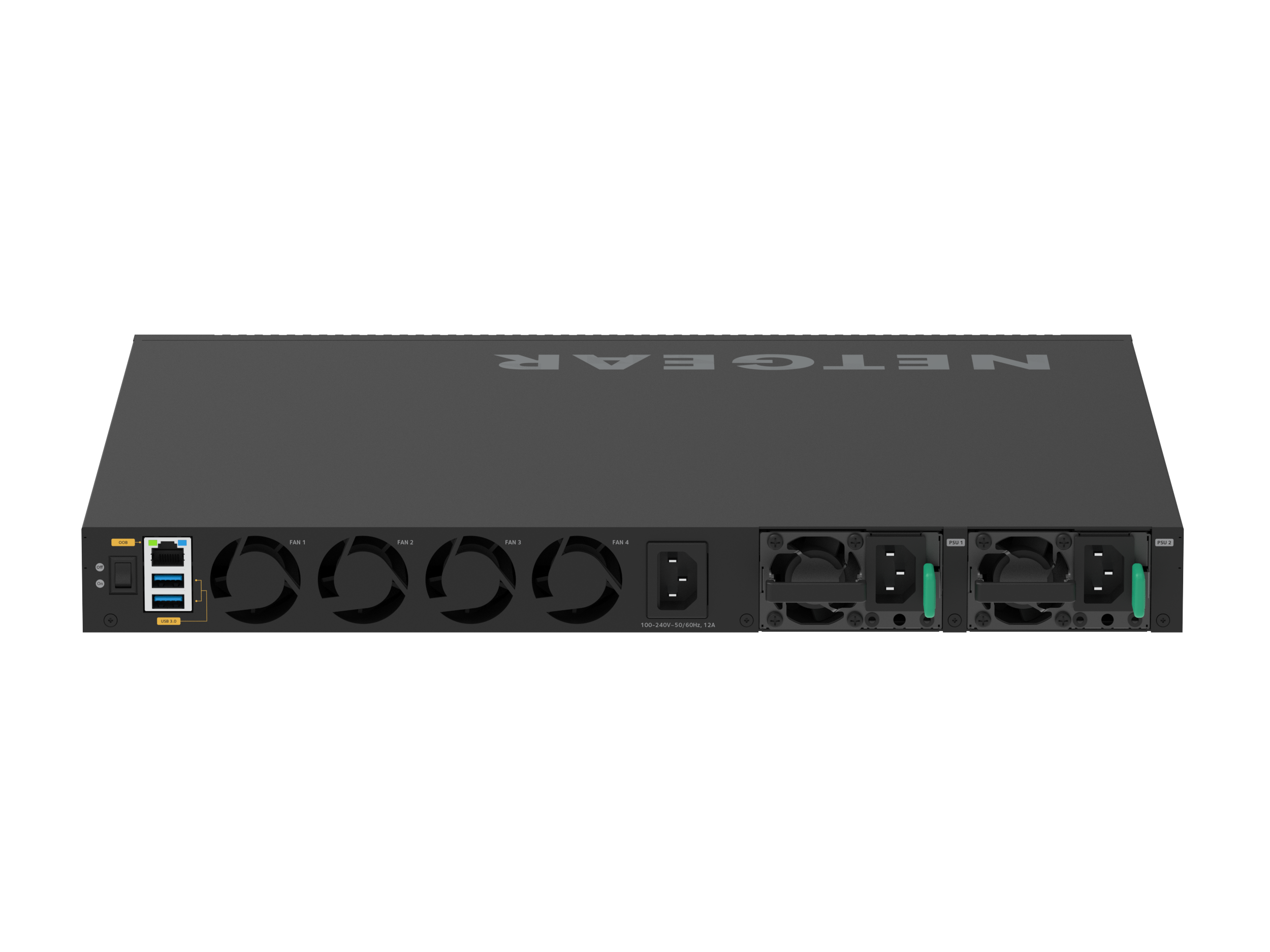

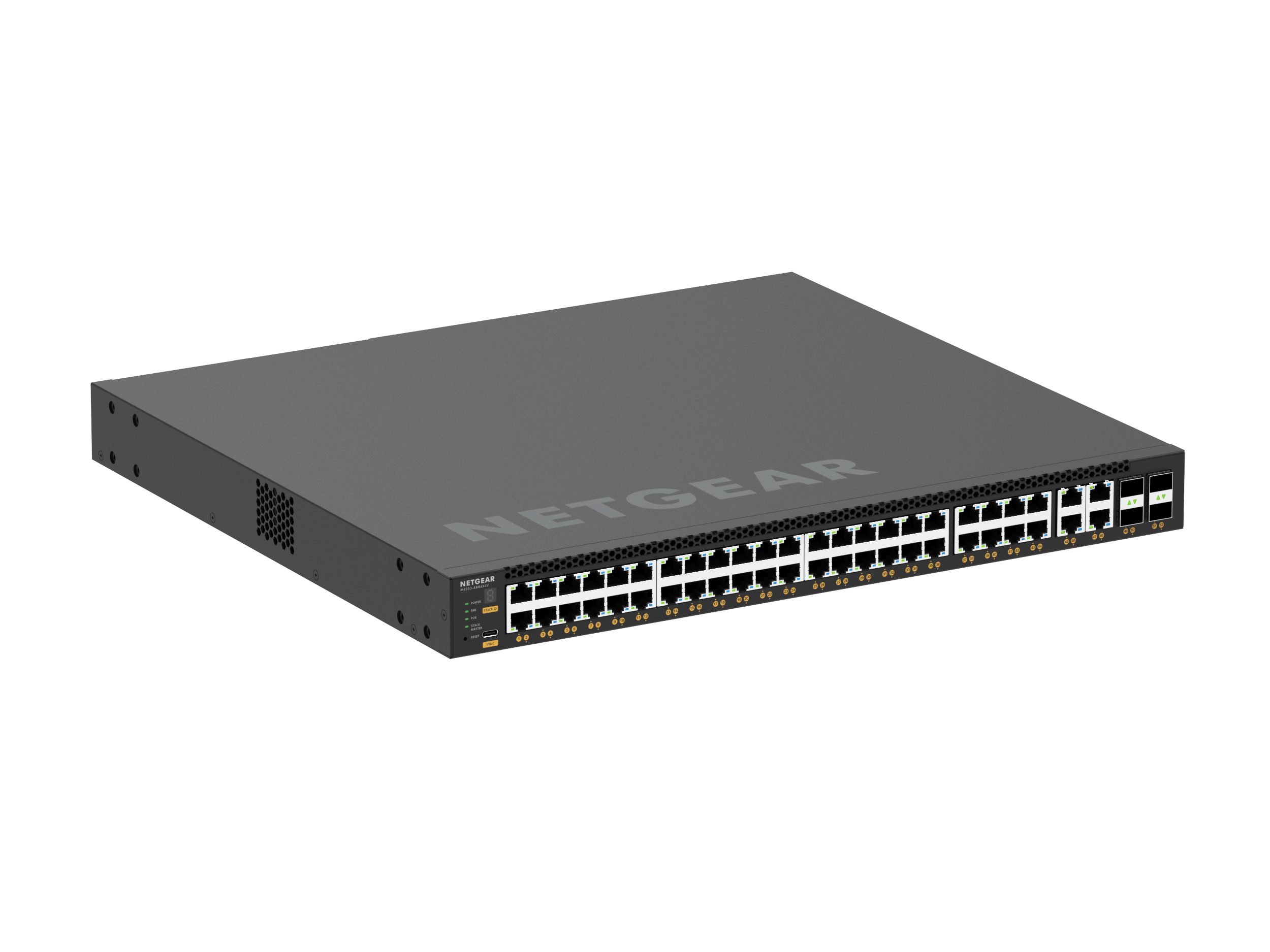

M4350-MSM4352 Technical Specifications
| M4350-44M4X4V (MSM4352) | 1 |
| Power cord(s) | 1 |
| Console USB Type-C cable | 1 |
| Rack-mounting standard bracket set | 1 |
| Set of longer brackets for recessed mounting | 1 |
| Rubber footpads for tabletop installation | 4 |
| Installation guide | 1 |
| Width | 440mm |
| Depth | 400mm |
| Height | 43.2mm |
| Weight | 7.34kg (16.18lb) |
| Primary Port Speed | 2.5 Gigabit |
| Number of Ports | 52 (44 x 2.5G PoE++, 4 x 10G/Multi-Gig PoE++, 4 x 25G SFP28) |
| PoE Ports / Budget | 48 PoE++ (90W/port), 194W Base, up to 3,314W Budget |
| IGMP Support | Enhanced (NETGEAR IGMP Plus™) |
| Jumbo Frame Support | Yes, up to 12kb |
| AVB Support | Yes, included |
| Acoustics | Quiet Mode 34dB@25ºC |
| Power Consumption | With PoE: 351.5W/1198.62Btu/hr Without PoE: 133.5W/419.19Btu/hr Standby without any port connection: 56.5W/177.41Btu/hr |
| PSU Compatible Models | APS350Wv1 APS600Wv2 APS920Wv1 APS2000Wv1 |
