Description
Power and Throughput
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.
Fast, EasyConfiguration
for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.
Focus on the Event Not the Fan Noise
Most models have quiet mode which greatly reduces fan noise.
Designed For AV Over IP Right out of the Box
With built-in NETGEAR IGMP Plus™, there’s little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

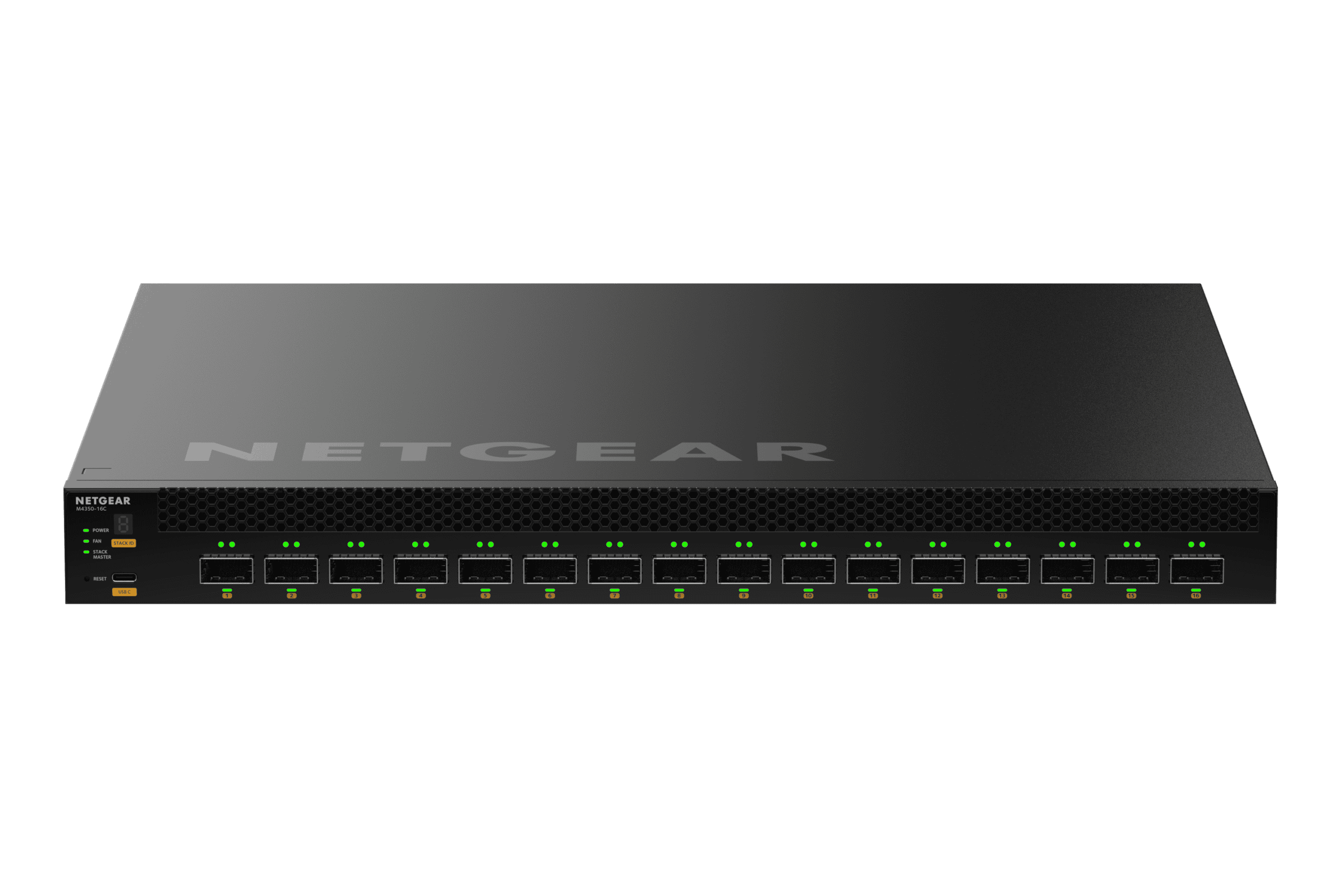

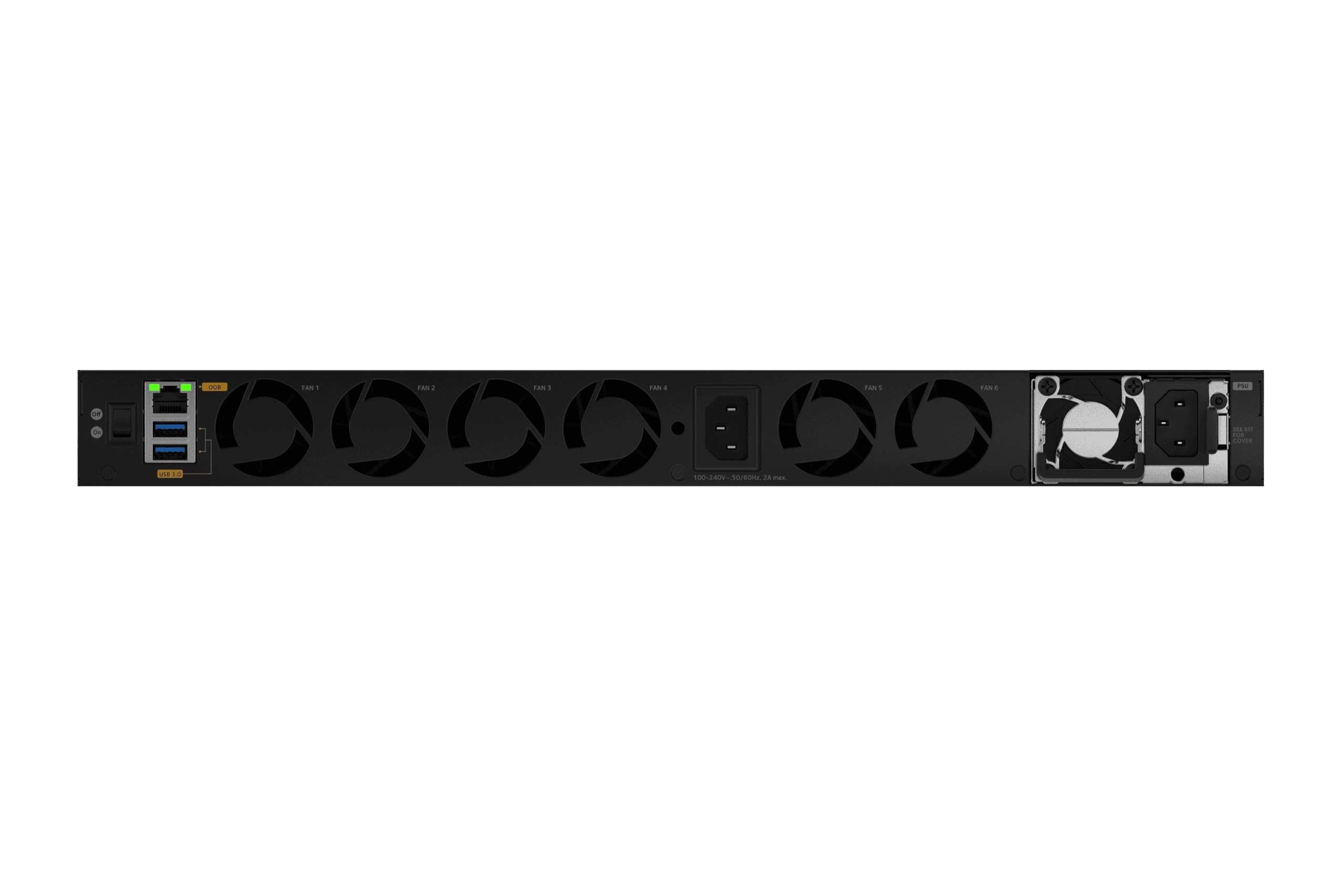

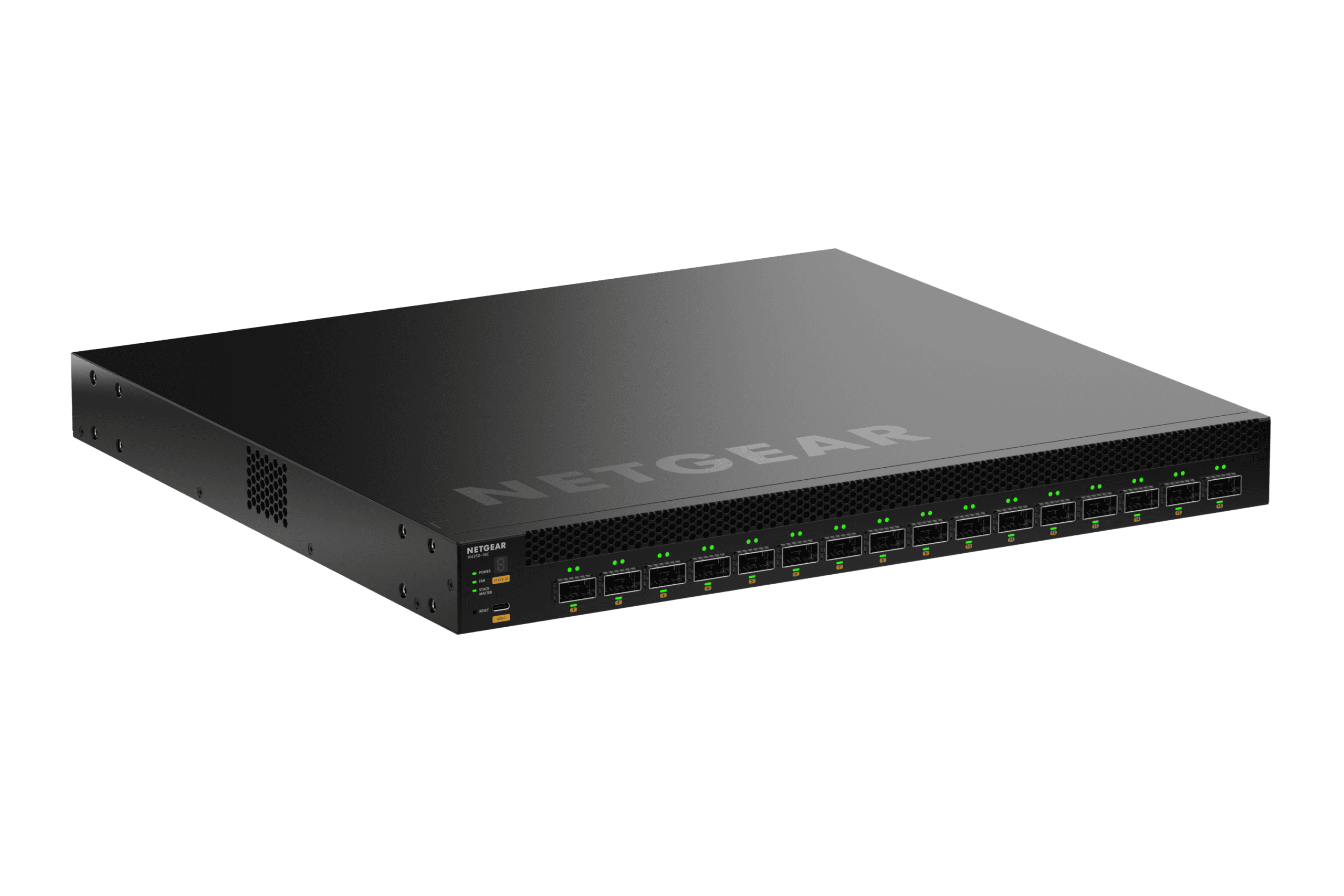

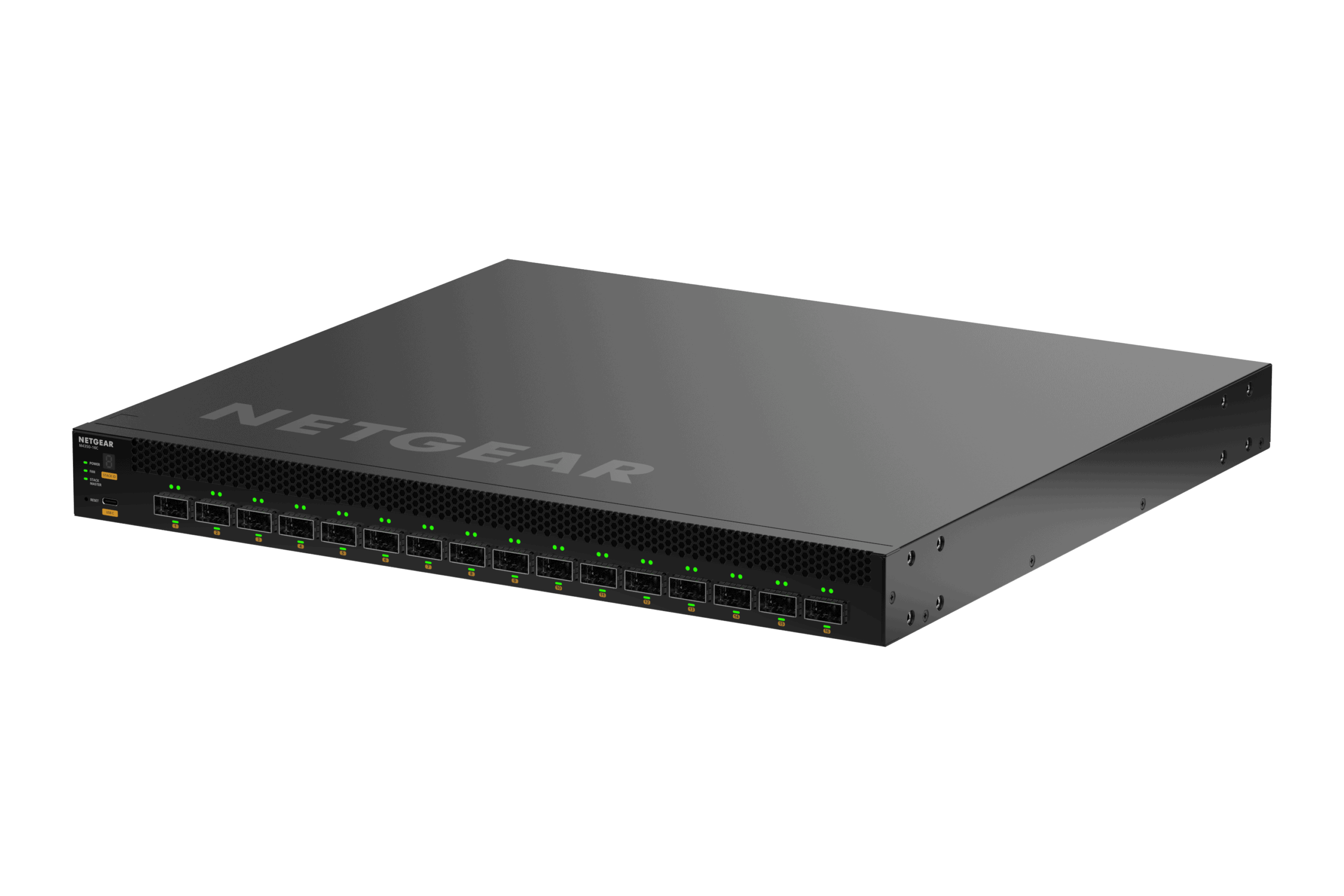

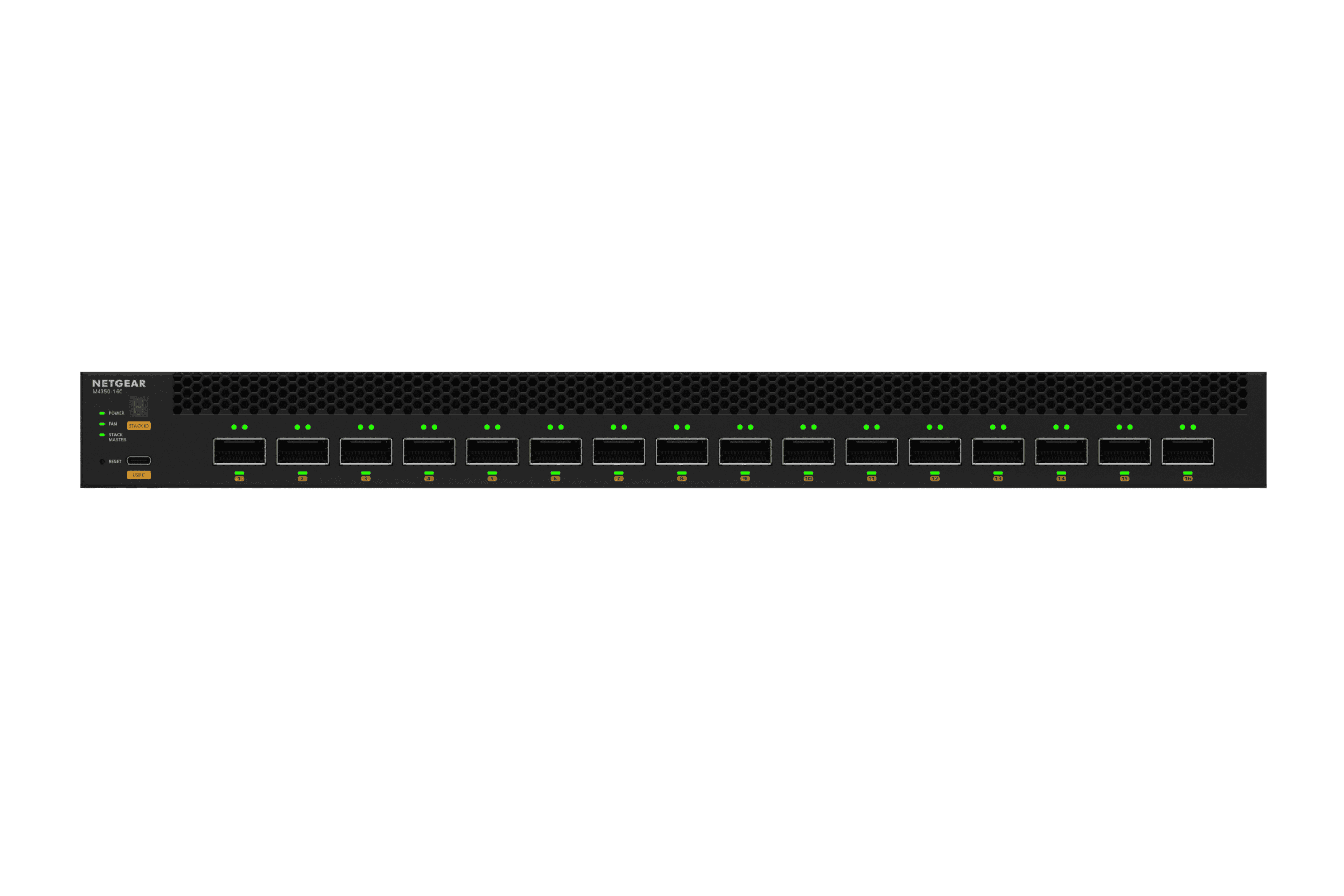

M4350-16C (CSM4316) Technical Specifications
M4350-16C (CSM4316) | 1 |
Power cord(s) | 1 |
Console USB Type-C cable | 1 |
Rack-mounting standard bracket set | 1 |
Set of longer brackets for recessed mounting | 1 |
Rubber footpads for tabletop installation | 4 |
Installation guide | 1 |
Width | 440mm |
Depth | 400mm |
Height | 43.2mm |
Weight | 8.03kg (17.70lb) |
Primary Port Speed | 100 Gigabit |
Number of Ports | 16 (16 x 100G QSFP28) |
IGMP Support | Enhanced (NETGEAR IGMP Plus™) |
Jumbo Frame Support | Yes, up to 12kb |
AVB Support | Yes, included. |
Acoustics | Quiet Mode 30.4dB@25ºC |
Power Consumption | Maximum: 161.9W/552.40Btu/hr |
PSU Compatible Models | APS600Wv3A |
