Description
Details
- 10G/Multi-Gig and 2.5G Dual WAN ports with failover

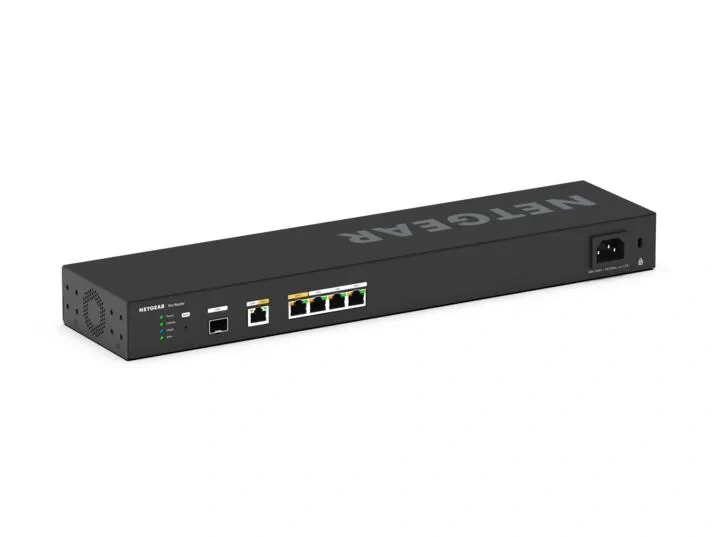

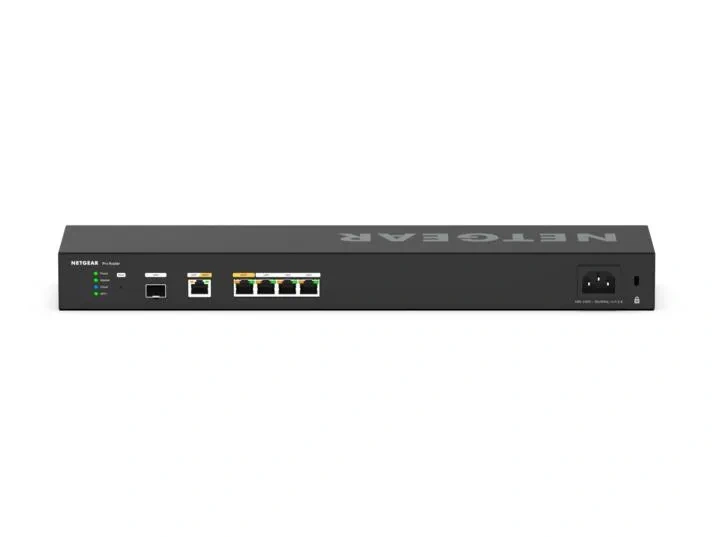

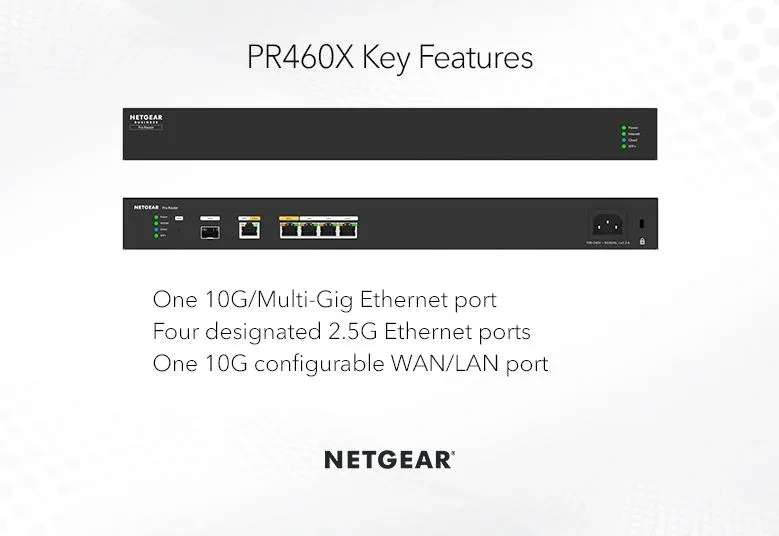

- High performance hardware with one 10G/Multi-Gig Ethernet port, four 2.5G Ethernet ports and one 10G SFP+ port for long-distance backhaul.
- Seamless integration with NETGEAR Pro WiFi Access Points and select Smart switches through NETGEAR Insight Cloud Management
- Configure with NETGEAR Engage for integration with AV networks

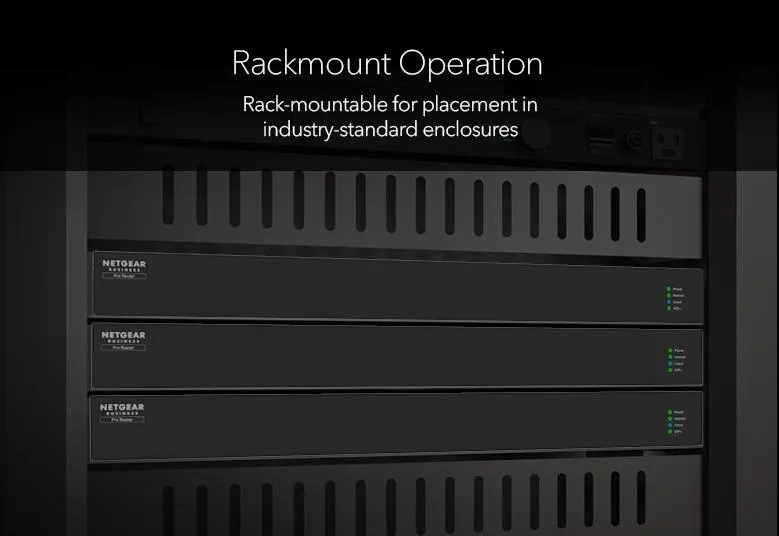

- Rack-mountable for placement in industry-standard enclosures
- Firewall protection
- IPSec configuration to create secure site-2-site VPN connections
- 4-years of NETGEAR Insight Remote Cloud Management included
- Add advanced threat prevention, web and DNS security with a simple license add-on.
- Turn your PR460X into a comprehensive security gateway with no separate hardware required.
WHAT’S INCLUDED

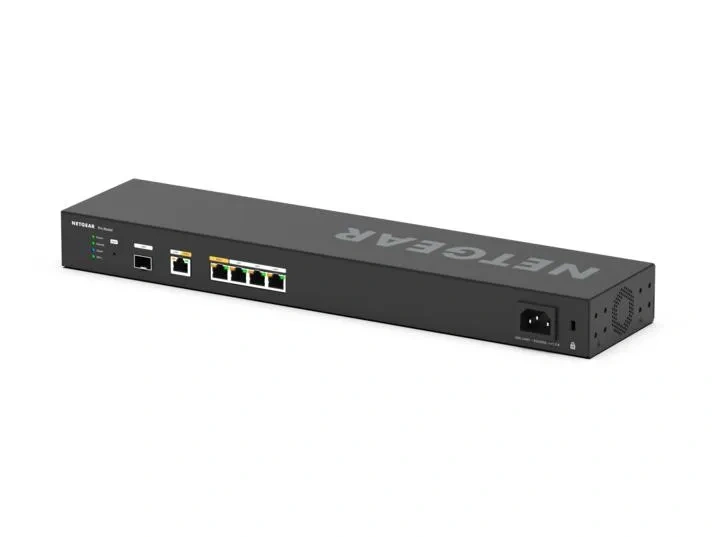

NETGEAR PR460X 10G/Multi-Gigabit Dual-WAN Pro Router with Insight Cloud Management
DC power adapter (varies by region)
Ethernet cable
Installation guide
TECHNICAL DETAILS
Width: 440mm
Depth: 100mm
Height: 43.2mm
Weight: 3.27lb (1484g)
Hardware: Quad Core ARM A73 @ 2.2 GHz, 2GB DDR4, Flash Memory 4GB eMMC
Connectivity: Network Switching Subsystem (NSS) processor
– 1 x 10G/Multi-gigabit Copper (Configurable LAN/WAN)
– 1 x 2.5G/1G RJ-45 (WAN)
– 3 x 2.5G/1G RJ-45 (LAN)
– 1 x 10G/1G SFP+ (LAN)
Performance: WAN/LAN speed at 2.5G or 10G port wired speed.
LAN/VLAN: Maximum Number of VLANs is 8, DHCP Server (limit is 32), VLANs 802.1Q
Security: Firewall Traffic Rules/Scheduling, Port Forwarding, Port Triggering, Stateful Packet Inspection (SPI), Port/Service Blocking, Denial-of-service (DoS) Prevention, Stealth Mode, Block TCP Flood, Block UDP Flood, Respond To Ping on Internet Port.
VoIP SIP ALG: Yes
Networking: ISP Address Assignment DHCP, Static IP Assignment, PPPoE, NAT, Static Routing, Routing Protocol (RIPv1, RIPv2), MAC Address Cloning/spoofing, NTP Support, UPnP, Auto Uplink on Switch Ports
VPN: IPSec
Encryption/Authentication: 3DES, AES (128, 192, 256 bit)/SHA-1, SHA-2 (256bit), MD5
Key Exchange: IKEv1, IKEv2, Pre-shared Key
Management Options: Insight Cloud, Logging Accepted Packets, Dropped Packets Statistics, System, Source MAC filter, Session Limit, Bandwidth Limit, Ipsec VPN, Log Delivery Insight logging, Diagnostics Ping, DNS Lookup, Trace Route, Speed test, Maintenance Save/restore Configuration, Restore to Factory Defaults, Firmware Upgrades, Display and monitor Statistics
Major Regulatory Compliance Environment: RoHS
Safety: CE/LVD, CSA
EMI: CE/LVD, CSA
Temperatures Operating Temperature: 0° – 40°C (32°-104° F)
Storage Temperature: -20° – 70° C (-4° – 158° F)
Humidity: humidity 90% maximum relative humidity, non-condensing, Storage humidity 95% maximum relative humidity, non-condensing, Electrical Specifications Power adapter input localized to regions
Power: AC 100-240V, 50/60Hz, 1.3A
DOCUMENTS
Datasheet
Installation Guide
User Manual
